PMC-350-C Three-Phase LoRaWAN DIN Energy Meter

SKU:
$200.00 USD

Sub-Model: PMC-350-CSCCT525NN6E

PMC-350-CSCCT525NN6E
PMC-350-CSCCT525NN6E
PMC-350-CSCCT525NN7E
PMC-350-C5545NXNE

Main Documents

Catalogue English Datasheet Ordering Guide User Manual

Description

PMC-350-C Three-Phase LoRaWAN DIN Energy Meter


Device Introduction
  • PMC-350-C 3-Phase DIN Energy Meter is CET’s latest offer for the wireless IoT energy metering market using the LoRaWAN technology for its Long-Range wireless communication capability. Housed in a standard DIN form factor measuring 72x70x95mm, it is perfectly suited for extremely space restricting environment. With a standard RS-485 port and Modbus RTU protocol support, IEC 62053-22 Class 0.5S and IEC 62053-21 Class 1 compliance for 5A Input and SCCT/SCCTA Input respectively as well as optional support for LoRaWAN AS923-1/2/3/4, KR920, AU915 or EU868, it becomes a vital component of an intelligent, distributed and IoT based EMS.
  • The PMC-350-C optionally provides 4xDI for Status Monitoring, 2xRO for Control and Alarming or 2xSS Pulse Output for Energy Pulsing as well as 2 or 4xRTD and 1xIresidual Input for Temperature and Leakage Current measurements, respectively.

Product Highlight
  • Three-Phase LoRaWAN Energy Meter
  • IEC62053-22 Class 0.5S, IEC62053-21 Class 1 Compliant
  • 35mm DIN Rail, 72x70x95mm
  • B&W LCD Display
  • Harmonics, Demands & TOU, Max/Min Log, Energy Log, Freeze Log, Data Log and Event Log
  • Modbus RTU, LoRaWAN Class A/C at AS923/KR920 ISM Bands
  • 1xRS-485
  • Optional 4xDI, 2xDO, 4xRTD, 1xIr, 2xSS Pulse Output

Typical Application
  • Industrial, Commercial and Utility Substation Metering
  • Building, Factory and Process Automation
  • Sub-metering and Cost Allocation
  • Energy Management and Power Quality Monitoring
  • LoRaWAN Class A/C at AS923-1/2/3/4, KR920, AU915 or EU868

Related Products

PMC-220 Single-Phase Multifunction Meter

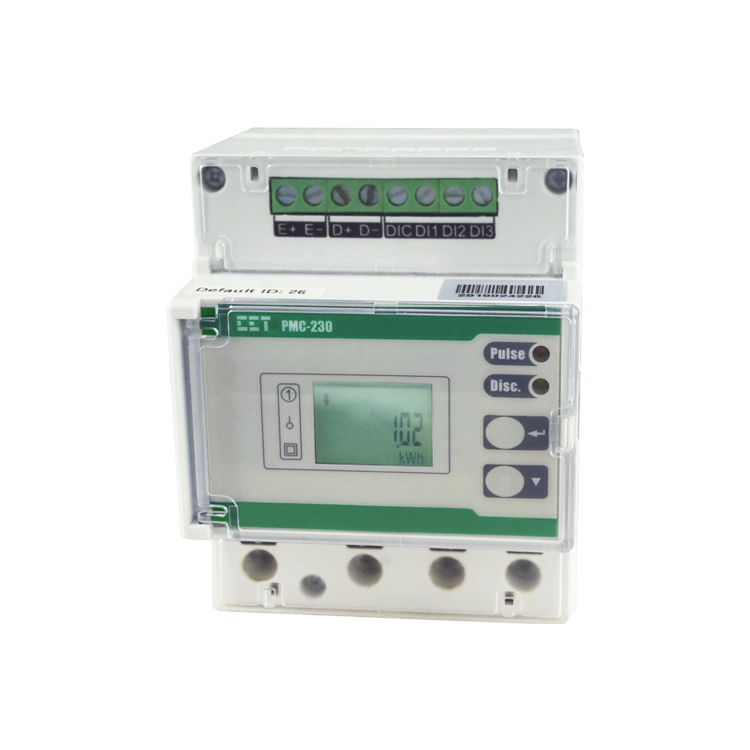

PMC-230 Single-Phase Multifunction Meter

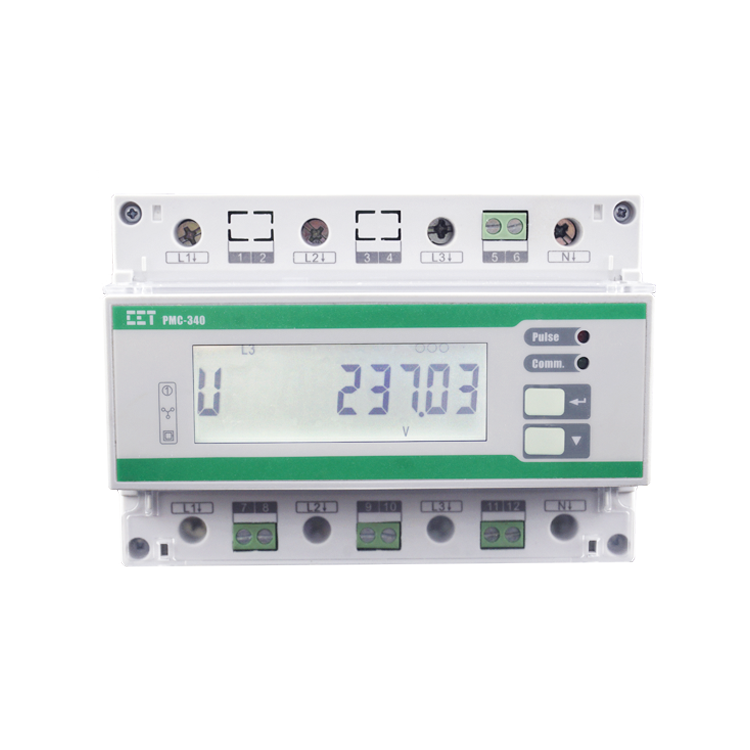

PMC-340 Digital Three-Phase Energy Meter

Related Solutions

Specification

Technical Specification

Voltage Inputs(V1,V2,V3,VN)
Voltage (Un)
277ULN/480ULL
Range
20-277V L-N/35-480V L-L
Burden
<2W/phase
Input Impedance
5MΩ
Permanent Overload
750VAC L-L
Frequency
45-65Hz
Current Inputs(·I11,I12,·I21,I22,·I31,I32)
SCCT Option
SCCTA Option
Current(In)
40mA
2mA
Range
0.15%-100%In
0.1%-120%In
Starting Current
0.15%In
0.1%In
Burden
<0.25VA per phase
<0.25VA per phase
External SCCTs
50A/40mA,100A/40mA, 200A/40mA,400A/40mA, 800A/40mA,1600A/40mA
5A/2mA
Optional(In)
5A
Range
5mA-6A
Power Supply(L+,N-)
Standard
95-250VAC/DC,±10%,47-440Hz
Optional
95-480VAC/DC,±10%,47-440Hz
Burden
<2W
Overvoltage Category
OVC III up to 300ULN
Optional Digital Inputs(DI1,DI2,DI3,DI4,DIC)
Type
Dry contact,24VDC internally wetted
Sampling
1000Hz
Hysteresis
1ms minimum
Optional Digital Outputs(DO11,DO12,DO21,DO22)
Type
Form A Mechanical Relay
Loading
5A@250VAC or 30VDC
Optional RTD Temperature Inputs(TC1,TC2,TC3,TC4)
RTD Type
2-Wire PT100(sensor not included)
PT100
-40-200°C
Alarm Range
45-140°C
Optional Residual Current Inputs(·IR,IR)
Range
20mA-2000mA
Optional Solid State Energy Pulse Output(E1+,E1-,E2+,E2-)Selectable kWh/kvarh
Pulse Constant
10/100/1000/3200 imp/kxh
Isolation
Optical
Max.Load Voltage
80V
Max.Forward Current
50mA
Pulse Width
80±20ms
Communications
Protocol
Modbus RTU(Optional LoRaWAN support at AS923-1/2/3/4/KR920/AU915/EU868)
RS-485 Port(Standard)
1
Baud Rate
1200/2400/4800/9600/19200/38400bps
LoRaWAN(Optional)
LoRaWANTM Specification 1.0.2 ClassA/C Compliance
ISM Bands(Optional)
Applicable to the following regions:
AS923-1
Australia,NewZealand,Malaysia,HongKong,
Singapore,Taiwan,Thailand,Cambodia,etc.
AS923-2
Vietnam,Indonesia
AS923-3
Denmark,Norway,SaudiArabia,etc.
AS923-4
Israel
KR920
South Korea
AU915
Australia,NewZealand,Argentina,Anguilla,Brazil
EU868
Europe,United Arab Emirates,etc.
Environmental Conditions
Operating Temp.
-25 °C to + 70°C
Storage Temp.
-40 °C to + 85°C
Humidity
5% to 95% non-condensing
Atmospheric Pressure
70 kPa to 106 kPa
Pollution Degree
2
Mechanical Characteristics
Mounting
DIN Rail or optional Panel Mount
Unit Dimensions
72x70x95mm
Panel Cutoutt
78x67mm
IP Rating
IP30
Features Summary
Display (Backlit)
B&W (No Backlit)
Type of Measurement
ULN per Phase &Avg.
ULL per Phase&Avg.
Current per Phase &Avg.
Neutral Current (Meas./Calc.)
Frequency
kW per Phase & Total
kvar per Phase & Total
kVA per Phase& Total
PF per Phase& Total
kWh lmport/Export
kvarh Import/Export
kVAh Total
Power Quality
THD Voltage & Current
TOHD Voltage & Current
TEHD Voltage & Current
2nd-31st Harmonics
K-Factor
Voltage/Current Unbalance
Battery-backed Real-time Clock
√
Demands
Present , Predicted Demands and Max.Demands for This Month & Last Month
Multi-Tariff TOU capability
Two TOU schedules, each providing:
12 Seasons
90 Holidays
20 Daily Profiles, each with 12 Periods in 15-minute interval
8 Tariffs
Setpoints
10 Setpoints
Diagnostics
√
Logs
Max./Min.Log
This month & Last Month
Monthly Energy Log
12 months
Freeze Logs
60 Daily Freeze Logs, 36 Monthly Freeze Logs
Data Recorder
5 Data Recorders
Max. Recording Depth @ 10000 records
SOE Log
100 entries
On-board Log Memory
4MB

Accuracy

Parameters
Accuracy
Resolution
Voltage
SCCT/SCCTA: ±0.5%
5A CT Input: ±0.2%
0.01V
Current
SCCT/SCCTA: ±0.5%
5A CT Input: ±0.2%
0.001A
kW,kvar,kVA
SCCT/SCCTA: ±1%
5A CT Input: ±0.5%
0.001kW/kvar/kVA
kWh,kVAh
SCCT/SCCTA: IEC62053-21:2020 Class1
5A CT Input: IEC62053-22:2020 Class0.5S
0.01kXh
kvarh
SCCT/SCCTA: IEC62053-23:2020 Class2
IEC62053-24: 2020 Class1
5A CT Input: IEC62053-23:2020 Class2
IEC62053-24: 2020 Class0.5S
0.01kvarh
PF
SCCT/SCCTA: ±1%
5A CT Input: ±0.5%
0.001
Frequency
±0.02Hz
0.01Hz
In(Cal.)
±1.0%
0.001A
THD
IEC61000-4-7 Class II
0.001%
Iresidual
±1.0%
0.1mA
Temperature
±1°C
0.1°C

Standards of Compliance

Safety Requirements
CE LVD Directive 2014/35/EU
EN 61010-1: 2010
EN 61010-2-030: 2010
Electrical Safety in Low Voltage Distribution Systems up to 1000Vac and 1500Vdc
IEC 61557-12:2018(PMD)
Insulation
AC Voltage:2kV @ 1 minute
Insulation Resistance: >100MΩ
Impulse Voltage:6kV, 1.2/50µs
IEC 62052-31: 2015
Electromagnetic Compatibility EMC 2014/30/EU(EN 61326:2013)
Immunity Tests
Electrostatic Discharge
EN 61000-4-2:2009
Radiated Fields
EN 61000-4-3:2006+A1:2008+A2:2010
Fast Transients
EN 61000-4-4:2012
Surges
EN 61000-4-5:2014+A1:2017
Conducted Disturbances
EN 61000-4-6:2014
Magnetic Fields
EN 61000-4-8:2010
Voltage Dips and Interruptions
EN 61000-4-11:2004+A1:2017
Ring Wave
EN 61000-4-12:2017
Emission Tests
Limits and Methods of Measurement of Electromagnetic Disturbance Characteristics of Industrial,Scientific and Medical(ISM) Radio-Frequency Equipment
EN 55011:2016
Limits and Methods of measurement of Radio Disturbance Characteristics of Information Technology Equipment
EN 55032:2015
Limits for Harmonic Current Emissions for Equipment with Rated Current≤16A
EN 61000-3-2:2014
Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment with Rated Current≤16A
EN 61000-3-3:2013
Emission Standard for Residential,Commercial and Light-Industrial Environments
EN 61000-6-4:2007+A1:2011
RED(Radio Equipment Directive)
Assessment of Electronic and Electrical Equipment Related to Human Exposure Restrictions for Electromagnetic Fields (0Hz-300GHz)
EN/IEC 62311:2020
Short Range Devices(SRD) Operating in the Frequency Range 25 MHz to 1000MHz
ETSI EN 300 220-1 V3.1.1:2017
ETSI EN 300 220-2 V3.1.1:2017
Audio/Video,Information and Communication Technology Equipment-Part1:Safety Requirements
IEC 62368-1:2018
Mechanical Tests
Spring Hammer Test
IEC 62052-11:2003
Vibration Test
IEC 62052-11:2003
Shock Test
IEC 62052-11:2003

Wiring Mode

Wiring Mode
3P4W
3P4W with 3CTs
3P3W
3P3W with 3CTs
3P3W with 2CTs
1P3W
1P3W with 2CTs
1P2W L-N
1P2W L-N with 1CT
1P2W L-L
1P2W L-L with 1CT
