PMC-230 Single-Phase Multifunction Meter

SKU:
$160.00 USD

Sub-Model: PMC-230-BC35AE

PMC-230-BC35AE
PMC-230-BC35AE
PMC-230-EC35AE

Main Documents

Catalogue English Datasheet Ordering Guide User Manual

Description

PMC-230 Single-Phase Multifunction Meter


Device Introduction
  • The PMC-230 Single-Phase Multifunction Meter is CET's latest offer for the low voltage energy metering market featuring DIN rail mount, compact construction, 63A direct input with an internal Disconnect Relay compliant with the Australia National Electricity Rules (NER) schedule 7.5 for the ability to disconnect/re-connect from the supply.
  • The PMC-230 also complies with the IEC 62053-21 Class 1 kWh Accuracy Standard and has received the certificate of approval from the National Measurement Institute (NMI) of Australia for compliance with the M6-1 Electricity Meters, Part 1: Metrological and Technical Requirements.
  • The PMC-230 provides 4MB Log Memory for Data Recording, 3xDI for Status Monitoring or Pulse Counting, 1xLED and 1xSS Pulse Output for energy pulsing. Further, the standard RS485 port supporting Modbus RTU protocol with password protection allows the PMC-230 to become a vital component of an intelligent, multifunction monitoring solution for any secured Energy Management Systems.

Product Highlight
  • Single-Phase Multifunction Meter
  • IEC62053-21 Class 1 (63A Direct Input), NMI (Australia) Approval
  • Internal 100A Disconnect Relay
  • 35mm DIN Rail, 72x68x90mm
  • B&W 8-digit LCD Display
  • Harmonics, Demands & TOU, Energy Log and Event Log
  • Modbus RTU,1xRS-485
  • 3xDI, 1xSS Pulse Output

Typical Application
  • DIN-Rail mount energy metering
  • Industrial, Commercial and Utility Substation Metering
  • Building, Factory and Process Automation
  • Sub-metering and Cost Allocation

Related Products

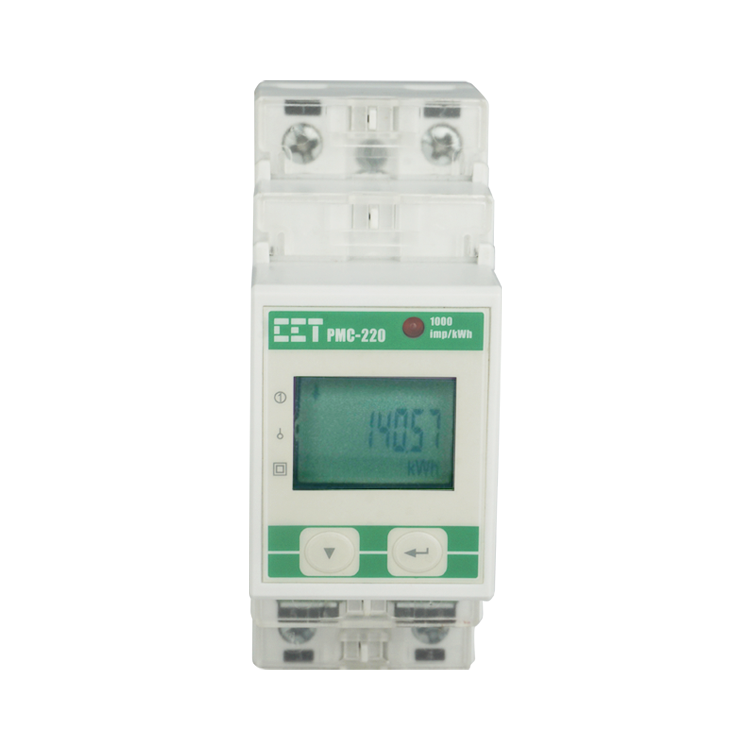

PMC-220 Single-Phase Multifunction Meter

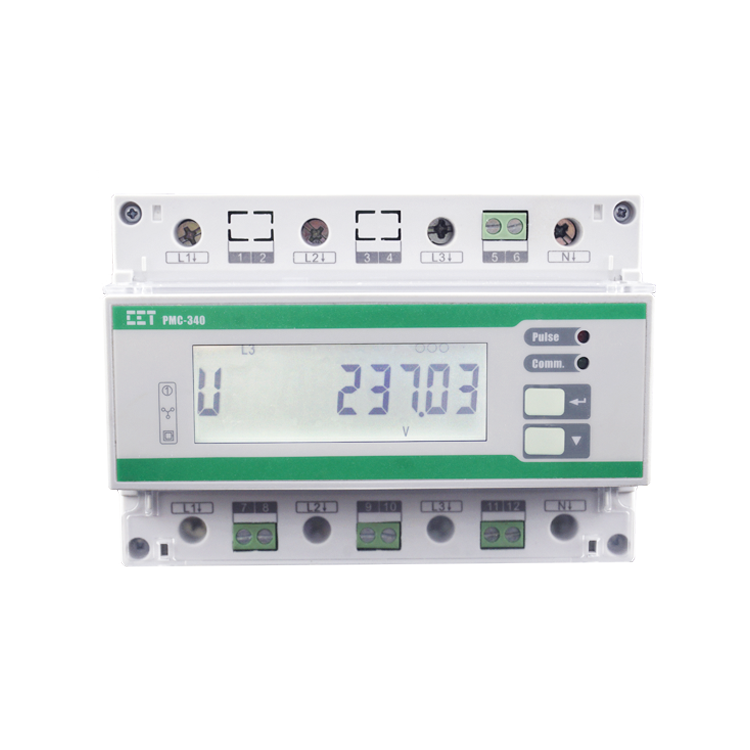

PMC-340 Digital Three-Phase Energy Meter

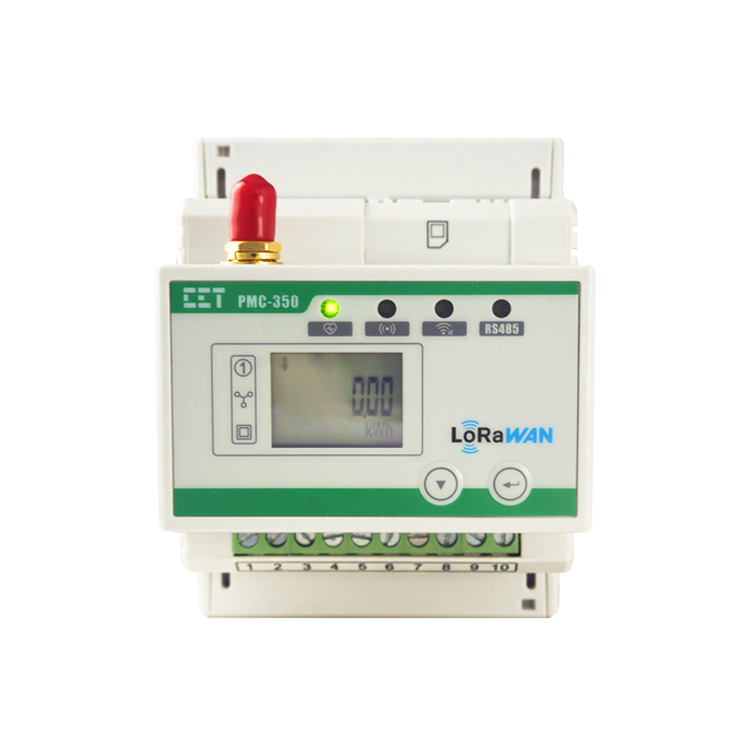

PMC-350-C Three-Phase LoRaWAN DIN Energy Meter

Related Solutions

Specification

Technical Specification

Measurement Inputs(L,N,L',N')
Voltage (Un)
220VAC  |  230VAC  |  240VAC
Overrange (% Un)
120%        |  115%        |  110%
Range
95-264VAC
Burden
< 3VA
Current (Ib/Imax)
5A/63A
Starting Current
0.4% Ib (20mA)
Minimum Current
5% Ib (0.25A)
Burden
<3VA
Frequency
50Hz/60Hz
Power Supply
Self-powered from 95 to 264VAC
Maximum Wire Size
25mm 2 (4AWG)
Torque for L,N Terminals
2.5 N.m
Disconnect Relay
Rated Load (Resistive)
100A@250VAC
Response Time
20ms
Short-time Over currents
7000A (-10% to +0%) @60ms
Service Life (Mech./Elec.)
100k/5k Operations
Rated Making Capacity @1.15Un and PF=1
63A Max.
Rated Breaking Capacity @ 1.15Un and PF=1
63A Max.
Dielectric (AC Voltage)
4kV@1minute(Contact to Coil)
2kV@1minute(Contact to Contact)
Insulation Resistance
1000MΩ/500VDC
SSR Pulse Output(E+,E-)
Type
Optically Isolated Solid State Relay
Max.Load Voltage
80VDC
Max.Forward Current
50mA
Maximum Wire Size
1.5 mm 2 (16AWG)
Torque for Terminals
0.45 N.m
Communications(D+,D-)
RS-485 (Modbus RTU)
Optically isolated @ 5kVrms
Maximum Wire Size
1.5 mm 2 (16AWG)
Torque for RS-485 Terminals
0.45 N.m
Communication port Protocol
Modbus RTU
RS-485 Port
1
Environmental Conditions
Operating Temp.
-25 °C to + 70°C
Storage Temp.
-40 °C to + 85°C
Humidity
5% to 95% non-condensing
Atmospheric Pressure
70 kPa to 106 kPa
Pollution Degree
2
Mechanical Characteristics
Unit Dimensions
72(W)x68(D)x90(H)mm
Mounting
DIN-Rail Mounting
IP Rating
IP51(Front), IP30(Body)
Features Summary
Display (Backlit)
B&W (No Backlit)
Type of Measurement
Voltage
Current
Frequency
Active Power
Reactive Power
Apparent Power
Power Factor
kWh lmport/Export
kvarh Import/Export
kVAh Total
Power Quality
THD Voltage & Current
Battery-backed Real-time Clock
√
Demands
Present Demands and Max.Demands for This Month & Last Month
Multi-Tariff TOU capability
Two TOU schedules, each providing:
4 Seasons
30 Holidays
12 Daily Profiles, each with 8 Periods in 15-minute interval
4 Tariffs
Disconnect Relay (Internal)
√
Logs
Monthly Energy Log
12 months
Data Recorder
1 Data Recorders
Max. Recording Depth @ 65535 records
SOE Log
32 entries
On-board Log Memory
4MB

Accuracy

Parameters
Accuracy
Resolution
Voltage
±0.5%
0.1V
Current
±0.5%
0.001A
P,Q,S
±1.0%
0.001kW/kvar/kVA
kWh
IEC 62053-21 Class 1
0.01kWh
kvarh
IEC 62053-23 Class 2
0.01kvarh
PF
±1.0%
0.001
Frequency
±0.02Hz
0.01Hz

Standards of Compliance

Safety Requirements
CE LVD Directive 2014/35/EU
EN 61010-1: 2010
EN 61010-2-030: 2010
Electrical Safety in Low Voltage Distribution Systems up to 1000Vac and 1500Vdc
IEC 61557-12:2018(PMD)
Insulation


AC Voltage
Impulse Voltage
IEC 62052-11: 2003
IEC 62053-21: 2003
NMI M6-1
4kV @ 1 minute
12kV+0%, -15%, 1.2/50µs (NMI M6-1)
Electromagnetic Compatibility EMC 2014/30/EU(EN 61326:2013)
Electrostatic Discharge
EN 61000-4-2:2009
Radiated Fields
EN 61000-4-3:2006+A1:2008+A2:2010
Fast Transients
EN 61000-4-4:2012
Surges
EN 61000-4-5:2014+A1:2017
Conducted Disturbances
EN 61000-4-6:2014
Magnetic Fields
EN 61000-4-8:2010
Voltage Dips and Interruptions
EN 61000-4-11:2004+A1:2017
Mechanical Tests
Spring Hammer Test
IEC 62052-11:2003
Vibration Test
IEC 62052-11:2003
Shock Test
IEC 62052-11:2003
Revenue Metering Approval
NMI M6-1 of Australia
Approval Mark: NMI 14/2/109
UL Ref. # R4789222180_NMI
