PMC-S963-E Intelligent Multifunction Meter


Device Introduction

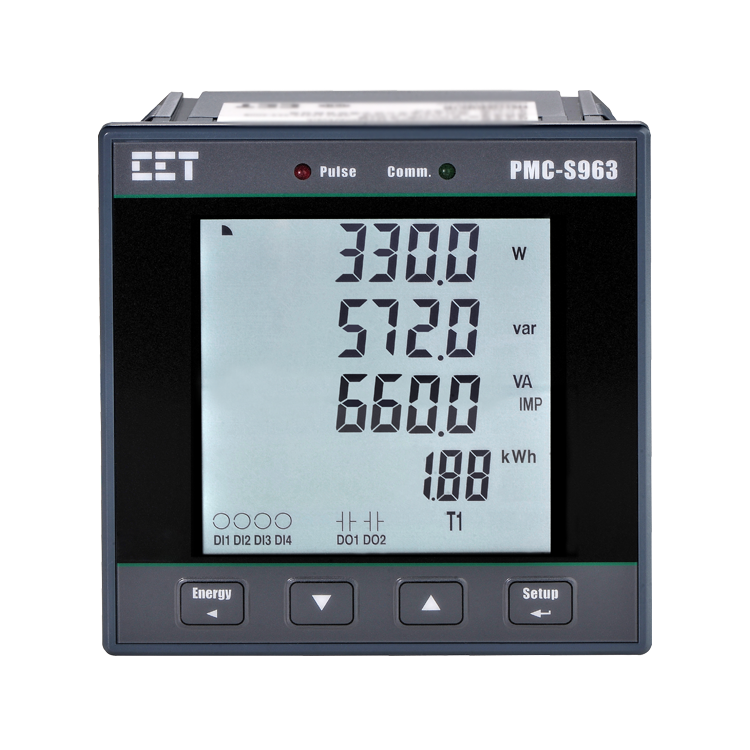

  • The PMC-S963-E Intelligent Multifunction Meter is CET’s latest offer for the low-cost digital power/energy metering market. Housed in a standard DIN form factor measuring 96x96x92mm, it is perfectly suited for industrial, commercial and utility applications.
  • The PMC-S963-E features quality construction, multifunction measurements and a large, backlit, 7-Segment LCD that is easy to navigate and user friendly. Compliance with the IEC 62053-22 Class 0.5S Standard, it is a cost-effective replacement for analog instrumentation that is capable of displaying 3-phase measurements at once.
  • PMC-S963–E offer different DI, DO & AO configurations to fit different applications, such as status monitoring & control, alarm and other I/O applications. With standard RS-485 port and 100BaseT Ethernet Port supporting multiple protocols, the PMC- S963-E can be easily integrated into Energy Management Systems as well as Building and Utility Automation Systems.

Product Highlight
  • Three-Phase Multifunction Meter
  • IEC62053-22 Class 0.5S
  • DIN96 (92x92mm Cutout)
  • Backlit B&W LCD Display
  • Harmonics, Demands, Max/Min Log, Setpoint Alarms and Event Log
  • 4xDI, optional 2xDO and 1xSS Output
  • 1xEthernet, 1xRS-485

Typical Application
  • Industrial, Commercial and Utility Substation Metering
  • Building, Factory and Process Automation
  • Sub-metering and Cost Allocation
  • Energy Management and Power Quality Monitoring

Related Products

PMC-53A 3-Phase Multifunction Meter-original

PMC-53A-E Ethernet Multifunction Meter

PMC-53M-A Digital Multifunction Meter

PMC-D726M DIN72 3-Ø Digital Multifunction Meter

PMC-S963-C Intelligent Multifunction Meter

Related Solutions

Specification

Technical Specification

Voltage Inputs(V1,V2,V3,VN)
Standard Un
240ULN/415ULL
Range
30V to 1.2Un
Overload
1.2xUn continuous, 2xUn for 1 s
Burden
<0.02VA per phase @ 240ULN
Ung Measurement Range
0.1V to 40V
Measurement Category
CAT III up to 300ULL
Frequency
45-65Hz
Current Inputs(I11,I12,I21,I22,I31,I32)
Standard In
5A (Optional 1 A)
Range
0.1% to 120%In
Starting Current
0.1% of In
Overload
1.2xIn continuous, 10xIn for 1 s
Burden
<0.25VA per phase@5A
Power Supply(L+,N-)
Standard
95-250VAC/DC,±10%,47-440Hz
Burden
<2W
Overvoltage Category
OVC III up to 300V
Digital Inputs(DI1,DI2,DI3,DI4,DIC)
Type
Dry contact,24VDC internally wetted
Sampling
1000Hz
Hysteresis
1ms minimum
Digital Outputs(DO11,DO12,DO21,DO22)
Type
Form A Mechanical Relay
Loading
5A@250VAC or 30VDC
Load Type
Resistive
Pulse Outputs(E+,E-)
Type
Form A Solid-State Relay
Isolation
Optical
Pulse Width
80ms±20ms
Max. Load Voltage
50VDC
Max. Forward Current
50mA
Installation Torque
Power Supply,Voltage Inputs,RS-485 and I/O
5 Ib-in(0.5N.m)
Environmental Conditions
Operating Temp.
-25 °C to + 70°C
Storage Temp.
-40 °C to + 85°C
Humidity
5% to 95% non-condensing
Atmospheric Pressure
70 kPa to 106 kPa
Altitude
<3000m
Pollution Degree
2
Mechanical Characteristics
Panel Cutout
92x92mm(3.62”x3.62”)
Unit Dimensions
96x96x92mm
IP Rating
IP65
Communications
Protocol
Modbus RTU, Modbus TCP, SNTP,
RS-485 Port
1
Ethernet
1
Features Summary
Display (Backlit)
B&W(Backlit)
Type of Measurement
ULN per Phase &Avg.
ULL per Phase&Avg.
Current per Phase &Avg.
Neutral Current (Calc.)
Frequency
kW per Phase & Total
kvar per Phase & Total
kVA per Phase& Total
PF per Phase& Total
kWh lmport/Export
kvarh Import/Export
kVAh Total
Power Quality
THD Voltage & Current
TOHD Voltage & Current
TEHD Voltage & Current
2nd-31st Harmonics
Crest Factor
Voltage/Current Unbalance
Battery-backed Real-time Clock
√
Demands
Present , Predicted Demands and Max.Demands for This Month & Last Month
Multi-Tariff TOU capability
One TOU schedules providing:
4 Seasons
4 Daily Profiles, each with 14 Periods in 15-minute interval
4 Tariffs
Diagnostics
√
Setpoints
9 Setpoints
Logs
Max./Min.Log
This month & Last Month
Monthly Energy Log
12 months
SOE Log
32 entries

Accuracy

Parameters
Accuracy
Resolution
Voltage
±0.2%
0.001V
Current
±0.2%
0.001A
Inc
±1%
0.001A
P,Q,S
±0.5%
0.001kx
kWh
IEC 62053-22 Class 0.5S
0.01kWh
kvarh
IEC 62053-23 Class 2
0.01kvarh
PF
±0.5%
0.001
Frequency
±0.02Hz
0.01Hz
THD
IEC 61000-4-7 Class II
0.001%

Standards of Compliance

Safety Requirements
CE LVD 2014/35/EU
EN 61010-1: 2010
EN 61010-2-030: 2010
Electrical Safety in Low Voltage Distribution Systems up to 1000Vac and 1500Vdc
IEC 61557-12:2018(PMD)
Insulation
AC Voltage: 2kV@1 minute
Insulation Resistance: >100MΩ
Impulse Voltage: 6kV,1.2/50µs
IEC 62052-11: 2003
IEC 62053-21: 2003
Electromagnetic Compatibility CE EMC Directive 2014/30/EU(EN 61326:2013)
Immunity Tests
Electrostatic Discharge
EN 61000-4-2:2009
Radiated Fields
EN 61000-4-3:2006+A1:2008+A2:2010
Fast Transients
EN 61000-4-4:2012
Surges
EN 61000-4-5:2014+A1:2017
Conducted Disturbances
EN 61000-4-6:2014
Magnetic Fields
EN 61000-4-8:2010
Voltage Dips and Interruptions
EN 61000-4-11:2004+A1:2017
Ring Waves
EN 61000-4-12:2017
Emission Tests
Limits and Methods of Measurement of Electromagnetic Disturbance Characteristics of Industrial,Scientific and Medical(ISM) Radio-Frequency Equipment
EN 55011:2016
Electromagnetic Compatibility of Multimedia Equipment - Emission Requirements
EN 55032:2015
Limits for Harmonic Current Emissions for Equipment with Rated Current≤16A
EN 61000-3-2:2014
Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment with Rated Current≤16A
EN 61000-3-3:2013
Emission Standard for Industrial Environments
EN 61000-6-4:2007+A1:2011
Mechanical Tests
Spring Hammer Test
IEC 62052-11:2003
Vibration Test
IEC 62052-11:2003
Shock Test
IEC 62052-11:2003

Wiring Mode

Wiring Mode
3P4W
3P4W with 3CTs and no PTs
3P4W with 3CTs and 3PTs
3P3W
3P3W with 3CTs
