PMC-512-A AC Multi-Circuit Power Monitor

SKU:
$160.00 USD

Sub-Model: PMC-512-ALA325CE

PMC-512-ALA325CE
PMC-512-ALA325CE

Main Documents

Catalogue Ordering Guide User Manual

Description

PMC-512-A AC Multi-Circuit Power Monitor


Device Introduction
  • PMC-512-A is CET’s latest offer for the economical multi-circuit monitoring of Data Centers, Telecom Base Stations, Industrial & Commercial Buildings. Housed in a compact DIN Rail Mount enclosure, the PMC-512-A is perfectly suited for high-density metering applications.
  • The PMC-512-A features quality construction with multifunction and Class 1 Energy Measurements. The PMC-512-A comes standard with a built-in LCD display, 12xDIs for status monitoring, 1xDO for control or alarming. The standard SOE Log records all setup changes, alarms and DI/DO operations in 1ms resolution. With dual RS-485 as standard feature supporting Modbus RTU, the PMC-512-A can easily be deployed in a stand-alone system with an optional 7" touch-screen HMI that supports up to 32 devices over a RS-485 network, or simultaneously with a centralized monitoring and control system for an AC power distribution network.

Product Highlight
  • AC Multi-Circuit Power Monitor
  • IEC 62053-21 Class 1
  • 126x90x65mm
  • Backlit B&W LCD Display
  • 12x1-Phase or 4x3-Phase Sub-Meters
  • Harmonics, Demands, Data Log and Event Log
  • Modbus RTU,2xRS-485
  • 12xDI, 1xDO

Typical Application
  • Data Center and Telecom Base Station PDUs
  • Industrial and Commercial Distribution Boards
  • Other High-Density, Multi-Circuit Monitoring Applications

Related Products

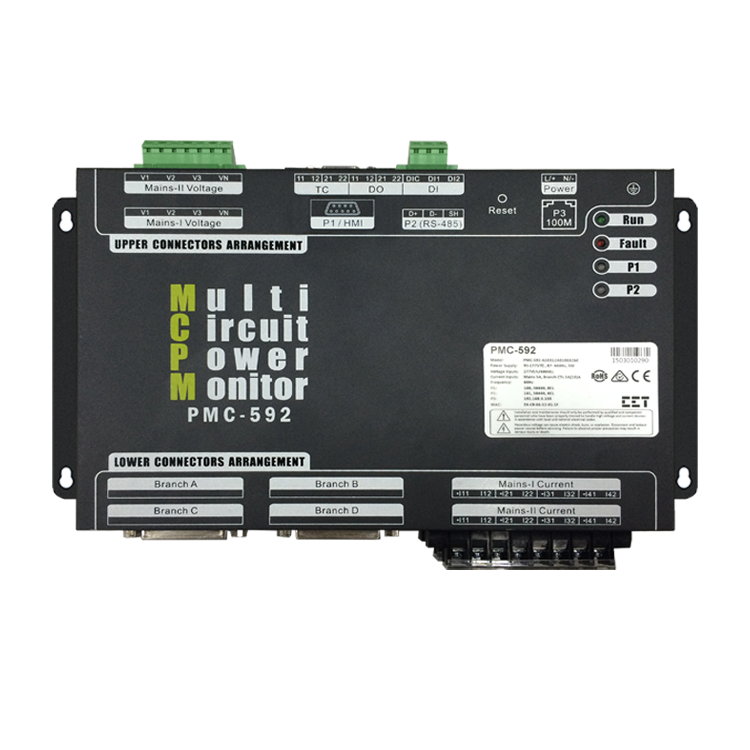

PMC-592 Multi Circuit Power Monitor

Related Solutions

Specification

Technical Specification

Voltage Inputs(V1,V2,V3,VN)
Un
240VLN/415VLL
Range
10V to 1.2Un
Start Voltage
10V
Overload
1.2xUn continuous, 2xUn for 10 s
Burden
<0.05VA/phase
Frequency
45-65Hz
Voltage Inputs(VN,VG)
Range
0~5V
Current Inputs(I11,I12,I21,I22,I31,I32)
In Primary
5A/100A/200A/250A/400A/800A
In Secondary
1.667mA for 5A
40mA for 100A/200A/250A/400A/800A
Range
0.4% to 100% In Primary
Starting Current
0.004 In Primary
Solid Core CT Range
   100A Molded Case CT (3-Ø)
   250A Solid Core CT (1-Ø)
   400A Solid Core CT (1-Ø)
   800A Solid Core CT (1-Ø)

0.4~100A
1~250A
1.6~400A
3.2~800A
Split Core CT Range
   5A SCCT (1-phase)
   100ASCCT(1-phase)
   200ASCCT(1-phase)
   400ASCCT(1-phase)
   800ASCCT(1-phase)

0.02~5A
0.4~100A
0.8~200A
1.4~400A
3.2~800A
Burden
<0.3 VA per phase @In
Overload
1.0xIn Primary (continuous)
Power Supply (L+,N-,GND)
Standard
95-250VAC/DC,±10%,47-440Hz
Optional
20-60VDC
Burden
<2W
Digital Inputs
Type
48VDC External Excitation
Digital Outputs
Type
Form A Mechanical Relay
Loading
5A@250VAC or 30VDC
Analog Input
Type
0-20/4-20mA
Overload
24mA maximum
Installation Torque
Power Supply/Voltage Input
0.8N.m
AI /RS485
0.2N.m
DO /DI
0.4N.m
Environmental Conditions
Operating Temp.
-25 °C to + 70°C
Storage Temp.
-40 °C to + 85°C
Humidity
5% to 95% non-condensing
Atmospheric Pressure
70 kPa to 106 kPa
Altitude
≤3000m
Mechanical Characteristics
Unit Dimensions
126x90x65mm
IP Rating
IP50
Communications
Protocol
Modbus RTU
RS-485 Port
2
Features Summary
Display (Backlit)
Dot-Matrix LCD (Backlit)
Type of Measurement
ULN per Phase &Avg.
ULL per Phase&Avg.
Current per Phase &Avg.
Neutral Current (Meas./Calc.)
Frequency
kW per Phase & Total
kvar per Phase & Total
kVA per Phase& Total
PF per Phase& Total
kWh lmport/Export
kvarh Import/Export
kVAh Total
Power Quality
THD Voltage & Current
TOHD Voltage & Current
TEHD Voltage & Current
2nd-31st Harmonics
K-Factor
Voltage/Current Unbalance
Battery-backed Real-time Clock
√
Demands
Present Demands and Max.Demands for This Month & Last Month
Alarm Setpoints
√
Logs
Monthly Energy Logs
24 Months
Freeze Logs
1000 Daily Freeze Logs, 24 Monthly Freeze Logs
Data Recorder
1 Data Recorders
Max. Recording Depth @ 5000 records
SOE Log
512 entries
On-board Log Memory
4MB

Accuracy

Parameters
Accuracy
Resolution
Voltage
±0.5%
0.01V
Current
±0.5%
0.001A
Phase Angle
±1°
0.1°
kW,kvar,kVA
±1.0%
0.001kx
kWh
IEC 62053-21:2003 Class 1
0.01kXh
kvarh
IEC 62053-24:2014 Class 1
0.01kvarh
AI
±1.0%
-
PF
±0.5%
0.001
Frequency
±0.02Hz
0.01Hz
THD
IEC 61000-4-7 Class B
0.1%
Voltage Unbalance
±0.2%
0.01%
Current Unbalance
±1.0%
0.01%

Standards of Compliance

Safety Requirements
CE LVD 2014/35/EU
EN 61010-1: 2010
EN 61010-2-030: 2010
Electrical Safety in Low Voltage Distribution Systems up to 1000Vac and 1500Vdc
IEC 61557-12:2008
Insulation
Dielectric test: 2kV@1 minute
Insulation Resistance: >100MΩ
Impulse Voltage: 6kV,1.2/50µs
IEC 60255-5-2000
Electromagnetic Compatibility CE EMC Directive 2014/30/EU(EN 61326:2013)
Immunity Tests
Electrostatic Discharge
EN 61000-4-2:2009
Radiated Fields
EN 61000-4-3:2006+A1:2008+A2:2010
Fast Transients
EN 61000-4-4:2012
Surges
EN 61000-4-5:2006
Conducted Disturbances
EN 61000-4-6:2009
Magnetic Fields
EN 61000-4-8:2010
Oscillatory Waves
EN 61000-4-12:2006
Emission Tests
Limits and Methods of Measurement of Electromagnetic Disturbance Characteristics of Industrial,Scientific and Medical(ISM) Radio-Frequency Equipment
EN 55011:2009 + A1:2010 (CISPR11)
Limits and methods of measurement of radio disturbance characteristics of information technology equipment
EN 55022:2010 + AC:2011 (CISPR22)
Limits for Harmonic Current Emissions for Equipment with Rated Current≤16A
EN 61000-3-2:2014
Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment with Rated Current≤16A
EN 61000-3-3:2013
Emission standard for residential,commercial and light-industrial environments
EN 61000-6-4:2007+A1:2011
Electromagnetic Emission Tests for Measuring Relays and Protection Equipment
EN 61000-4-12:2006
Mechanical Tests
Vibration Test
    Response
    Endurance

IEC 62052-11:2003 Level I
IEC 62052-11:2003 Level I
Shock Test
    Response
    Endurance

IEC 62052-11:2003 Level I
IEC 62052-11:2003 Level I
Bump Test
IEC 62052-11:2003 Level I

Wiring Mode

Wiring Mode
3P4W
3P4W without PTs & with VG
3P4W without PTs & VG
3P4W with VG and PTs
3P3W
3-Phase 3-Wire without PTs
3-Phase 3-Wire with PTs
1P2W
1-Phase 2-Wire Wiring with VG
1-Phase 2-Wire Wiring without VG
