PMC-1302-3 Ethernet Serial/LoRa Gateway

SKU:
$240.00 USD

Sub-Model: PMC-1302-3-T2T2NE

PMC-1302-3-T2T2NE
PMC-1302-3-T2T2NE
PMC-1302-3-T2T27E
PMC-1302-3-T2T2TE

Main Documents

Catalogue English Datasheet Ordering Guide User Manual

Description

PMC-1302-3 Ethernet Serial/LoRa Gateway

Device Introduction

  • The PMC-1302-3 ESG is an Ethernet Serial/LoRa Gateway which provides one 10/100BaseT Ethernet port, two RS-485 ports and an optional wireless LoRa port with AS923 band. It is the ideal equipment for connecting RS-485 and optionally LoRa enabled devices to an IP-based Ethernet LAN, making it possible to access serial and optionally LoRa devices over your Ethernet network for any SCADA or Automation applications. The PMC-1302-3 ESG has been specifically designed with industrial automation in mind and therefore provides un-surpassed performance and reliability under the harshest industrial or commercial environments.

Product Highlight

  • Ethernet to Serial/LoRa Gateway
  • 35mm DIN Rail (72x65x95mm)
  • LED Indictors
  • Simple Configuration via its Built-in Web Interface
  • LoRa (860-935MHz) configurable ISM Bands for wireless IoT applications in most countries
  • TCP, UDP, HTTP
  • 1x10/100BaseT, 2xRS-485 Ports, Optional LoRa port

Related Products

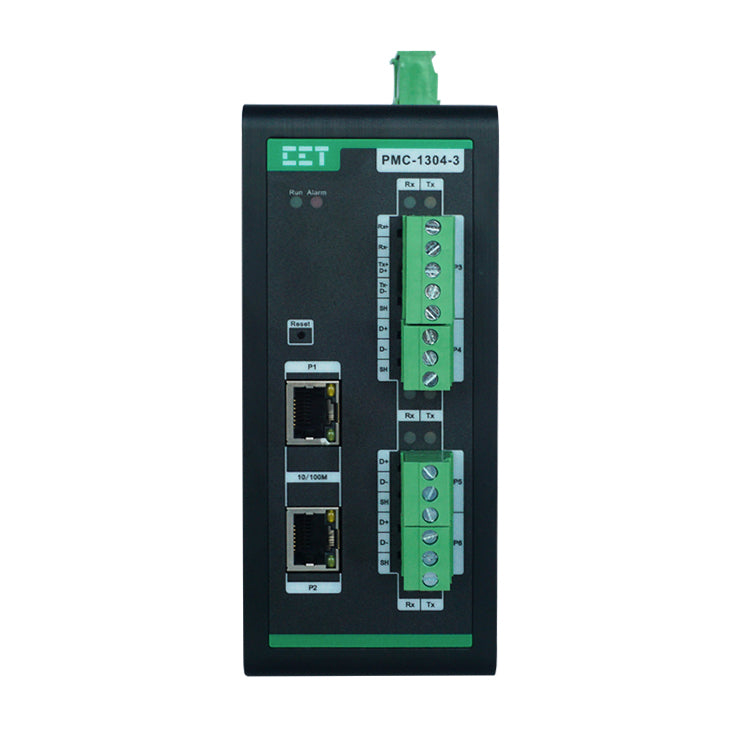

PMC-1304-3 Communications Processor

Related Solutions

Specification

Technical Specification

Communication
Ethernet Port(P1)
Speed
10/100 Mbps
Protocol
TCP, UDP, HTTP
RS-485(P2,P3)
Baudrate
300/600/1200/2400/4800/9600/19200/38400 bps
Data Bits
7,8
Stop Bits
1,2
LoRa(Optional)
RF Range
860-935 MHz
ISM Bands
EU863-870,RU864-870,IN865-867,US902-928,AU915-928, AS920-923 and AS923-925
RF Output Power
18 dBm (Maximum)
Receiver Sensitivity
'-136 dBm (Maximum)
Output Watts
0.03 (Typical)
FCC Part 15C
Certified by TCB
Front Panel LED Indicators
Run (Green)
Blinking-System is running normally
Data (Yellow)
Blinking-LoRa is receiving or transmitting data
P2, P3 (Green)
Blinking-Receiving activity
P2, P3 (Yellow)
Blinking-Transmitting activity
Power Supply (L/+,N/-)
Standard
95-250VAC/DC, 47-440Hz
Optional
20-60VDC
Burden
<3W
Protection
ESD Protection
8kV (contactless) & 6kV (contact)
Isolation Protection
3kV for RS-485 1.5kV for Ethernet Port
Environmental Conditions
Operating Temp.
'-25°C to +70°C
Storage Temp.
'-40°C to +85°C
Humidity
5% to 95% non-condensing
Atmospheric Pressure
70 kPa to 106 kPa
Mechanical Characteristics
Unit Dimensions
72x65x95mm
Mounting
DIN Rail
IP Rating
20

Standards of Compliance

Safety Requirements
Insulation
Dielectric Test
Insulation Resistance
Impulse Voltage
EN 61010-1:2010
EN 61010-2-030:2010
2kV @ 1 minute
>100MΩ
5kV, 1.2/50µs
Electromagnetic Compatibility
CE EMC Directive 2014 / 30 / EU (EN 61326:2013)
Electrostatic Discharge
EN 61000-4-2:2009
Radiated Fields
EN 61000-4-3:2006 + A1:2008 + A2:2010
Fast Transients
EN 61000‐4‐4:2012
Surges
EN 61000‐4‐5:2014 + A1:2017
Conducted Disturbances
EN 61000‐4‐6:2014
Magnetic Fields
EN 61000‐4‐8:2010
Voltage Dipsand Interruptions
EN 61000-4-11:2004 + A1:2017
EmissionTests
Limits and Methods of Measurement of Electromagnetic Disturbance Characteristics of Industrial,Scientific and Medical(ISM) Radio-Frequency Equipment
EN 55011:2016
Electromagnetic Compatibility of Multimedia Equipment - Emission Requirements
EN 55032:2015
Limits for Harmonic Current Emissions for Equipment with Rated Current≤16A
EN 61000-3-2:2014
Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment with Rated Current≤16A
EN 61000-3-3:2013
Emission Standard for Residential, Commercial and Light-Industrial Environments
EN 61000-6-4:2007 + A1:2011
Mechanical Tests
Spring Hammer Test
IEC 62052-11:2003
Vibration Test
IEC 62052-11:2003
Shock Test
IEC 62052-11:2003
