iMeter 6 Advanced Power Quality Monitor

SKU:
$1,200.00 USD

Sub-Model: iMeter 6-B5925AXDE

iMeter 6-B5925AXDE
iMeter 6-B5925AXDE

Main Documents

Catalogue English Datasheet Ordering Guide User Manual

Description

iMeter 6 Advanced Power Quality Monitor


    Device Introduction
    • The iMeter 6 is CET’s latest offer for the advanced Power Quality Monitoring of Incomers and Critical Feeders for Utilities, Data Centers, High-Tech Manufacturing Facilities and Heavy Industries. Housed in an industry-standard DIN form factor measuring 96x96x119.5mm, the iMeter 6’s compact size is perfectly suited for today’s space restricting environment.
    • iMeter 6 features quality construction with metal enclosure, advanced Power Quality and Revenue-Accurate measurements, High-resolution Waveform Recording Capabilities, comprehensive Data Logging with 2GB memory, extensive I/O and a user friendly, IPS Color Dot-Matrix Display @ 320x240. It also provides either an I4 Input for Neutral Current Measurement or a 0/4-20mA Analog Input for measuring external transducer signal such as Residual or Leakage Current. With a standard 10/100BaseT Ethernet Port and an RS-485 port supporting multiple protocols, the iMeter 6 becomes a vital component of an intelligent Power Quality Monitoring System.

    Product Highlight
    • IEC 62053-22 Class 0.2S, IEC61000-4-30 Ed. 3 Class S Compliant
    • DIN96 (92x92mm Pannel Cutout)
    • Colour IPS Dot-Matrix Display
    • Harmonics, Demands & TOU, PQ Log, Energy Log, Max/Min Log, Waveform Log and Event Log 2GB On-board Memory
    • Modbus RTU, Modbus TCP, HTTPS, SNTP, SMTPS, FTPS, SNMP, BACnet/IP, Ethernet Gateway, IEC61850
    • 1xEthernet, 1xRS-485 6xDI, 3xDO, Optional 1xAI

    Typical Application
    • Revenue Metering: IEC 62053-22 Class 0.2S
    • Power Quality Monitoring of Main Incomer or Critical Feeder
    • Utility, Industrial and Commercial Metering
    • Substation, Building and Factory Automation
    • Low, Medium and High Voltage Applications
    • Neutral (I4) and Residual Current (Ir) Monitoring

    Related Products

    iMeter 7A Advanced Power Quality Monitor

    iMeter 8 Advanced Power Quality Monitor

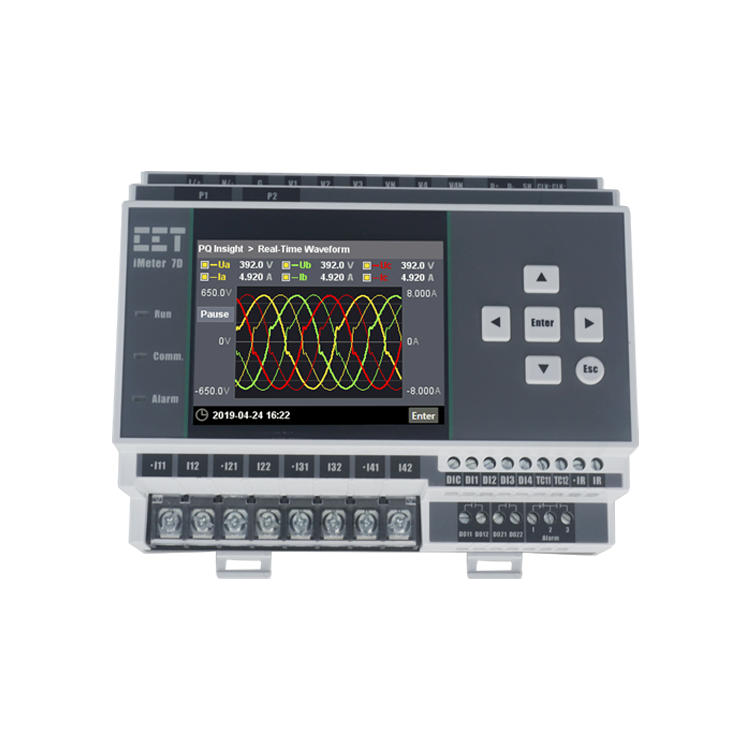

    iMeter D7 Advanced Power Quality Monitor

    Related Solutions

    Specification

    Technical Specification

    Voltage Inputs(V1,V2,V3,VN)
    Standard Un
    400VLN/690VLL+20%
    Range
    4V to 120%Un
    PT Ratio
      Primary
      Secondary

    1 to 1,000,000
    1 to 1,500
    Overload
    1.2xUn continuous, 2xUn for 10 s
    Burden
    <0.5VA@240V
    Measurement Category
    CAT III 600ULL
    Frequency
    42-69Hz
    Current Inputs(·I11,I12,·I21,I22,·I31,I32,·I41,I42)
    Standard(In/Imax)
    5A/10A
    Optional(In/Imax)
    1A/2A
    Range
    0.1% to 200%In
    CT Ratio
      Primary
      Secondary

    1 to 30,000
    1 to 50
    Overload
    2xIn continuous,4xIn for 60s,10xIn for 10s,20xIn for 1s
    Burden
    <0.25VA@5A
    Power Supply(L+,N-)
    Standard
    95-277VACL-N/415VACL-L,45-65Hz，90-300VDC
    Optional
    20-60VDC
    Burden
    <10VA/6W @ 240VAC/DC
    <3.6W@24VDC
    Digital Inputs(DI1,DI2,DI3,DI4,DI5,DI6,DIC)
    Type
    Dry contact,24VDC internally wetted
    Sampling
    1000Hz
    Hysteresis
    1-1,000ms programmable
    Digital Outputs(DO11,DO12,DO21,DO22,DO31,DO32)
    Type
    Form A Mechanical Relay
    Loading
    5A@250VAC or 30VDC
    LED Pulse Outputs(kWh,kvarh)
    Type
    Optical
    Pulse Constant
    1000/3200/5000/6400/12800 imp/kXh
    Optional Analog Input(AI+,AI-)
    Type
    0-20/4-20mA
    Overload
    24mA maximum
    Environmental Conditions
    Operating Temp.
    -25 °C to + 70°C
    Storage Temp.
    -40 °C to + 85°C
    Humidity
    5% to 95% non-condensing
    Atmospheric Pressure
    70 kPa to 106 kPa
    Altitude
    <3000m
    Pollution Degree
    2
    Mechanical Characteristics
    Enclosure
    Aluminum Alloy
    Panel Cutout
    92x92mm
    Unit Dimensions
    96x96x119.5 mm
    Shipping Dimensions
    300x220x160 mm
    IP Rating
    IP54
    Shipping Weight
    1.18kg
    Communications
    Protocol
    Modbus RTU, Modbus TCP ,HTTPS, SNTP, SMTPS,FTPS,SNMP,Ethernet Gateway, BACnet/IP, IEC61850
    RS-485 Port
    1
    Ethernet
    1
    Web Server
    √
    Features Summary
    Display (Backlit)
    Color IPS 320x240(Backlit)
    Type of Measurement
    ULN per Phase &Avg.
    ULL per Phase&Avg.
    Current per Phase &Avg.
    Neutral Current (Meas./Calc.)
    Frequency
    kW per Phase & Total
    kvar per Phase & Total
    kVA per Phase& Total
    PF per Phase& Total
    kWh lmport/Export
    kvarh Import/Export
    kVAh Total
    Power Quality
    THD Voltage & Current
    TOHD Voltage & Current
    TEHD Voltage & Current
    2nd-63rd Harmonics
    K-Factor
    Voltage/Current Unbalance
    Dip Swell Detection
    Transient Detection
    Time Synchronization
    RTC,GPS,IRIG-B,GPS,SNTP,Modbus RTU/TCP,
    Demands
    Present and Predicted Demands
    Max.Demands for This Month & Last Month
    Max./Min. values per Demand Interval
    Demand synchronization with DI
    Multi-Tariff TOU capability
    Two TOU schedules, each providing:
    12 Seasons
    90 Holidays
    20 Daily Profiles, each with 12 Periods in 15-minute interval
    8 Tariffs
    Setpoints
    16 Standard (1s) Setpoints
    8 High-Speed (1 cycle) Setpoints
    6 Logical Modules
    Logs
    Max./Min.Log
    This month & Last Month
    Interval Energy Recorder
    65535 entries
    Data Recorder
    28 Standard and 4 High-Speed DR Logs
    Max. Recording Depth @ 65,535 records
    Waveform Recorder
    128 entries
    Disturbance Waveform Recorder
    128 entries
    SOE Log
    512 entries
    PQ Log
    512 entries
    On-board Log Memory
    2GB

    Accuracy

    Parameters
    Accuracy
    Resolution
    Voltage
    ±0.1%
    0.001V
    Current
    ±0.1%
    0.001A
    I4 Measured
    ±0.1%
    0.001A
    kW,kvar,kVA
    ±0.2%
    0.001kx
    kWh,kVAh
    IEC 62053-22 Class 0.2S
    ANSI C12.20 Class 0.2
    0.1kXh
    kvarh
    IEC 62053-24 Class 0.5S
    IEC 62053-23 Class 2
    0.1kvarh
    PF
    ±0.2%
    0.001
    Frequency
    ±0.01Hz
    0.01Hz
    Harmonics
    IEC 61000-4-7 ClassI
    0.01%
    K-Factor
    IEC 61000-4-7 ClassI
    0.01
    Phase Angles
    ±1°
    0.1°
    U Deviation
    ±0.5%
    0.01%
    Freq.Deviation
    ±0.01Hz
    0.01Hz
    U Unbalance
    ±0.2%
    0.1%
    I Unbalance
    ±1.0%
    0.1%
    AI
    ±0.5%
    -

    Standards of Compliance

    Safety Requirements
    CE LVD 2014/35/EU
    EN 61010-1: 2010
    EN 61010-2-030: 2010
    Electrical Safety in Low Voltage Distribution Systems up to 1000Vac and 1500Vdc
    IEC 61557-12:2018(PMD)
    Insulation
    AC Voltage: 2kV@1 minute
    Insulation Resistance: >100MΩ
    Impulse Voltage: 6kV,1.2/50µs
    IEC 62052-11: 2003
    IEC 62053-21: 2003
    Electromagnetic Compatibility CE EMC Directive 2014/30/EU(EN 61326:2013)
    Immunity Tests
    Electrostatic Discharge
    EN 61000-4-2:2009
    Radiated Fields
    EN 61000-4-3:2006+A1:2008+A2:2010
    Fast Transients
    EN 61000-4-4:2012
    Surges
    EN 61000-4-5:2014+A1:2017
    Conducted Disturbances
    EN 61000-4-6:2014
    Magnetic Fields
    EN 61000-4-8:2010
    Voltage Dips and Interruptions
    EN 61000-4-11:2004+A1:2017
    Ring Waves
    EN 61000-4-12:2017
    Voltage Dips,Short Interruptions and Voltage Variations on DC Input Power Port
    EN 61000-4-29:2000
    Damped Oscillatory Wave
    EN 61000-4-18:2011
    Emission Tests
    Limits and Methods of Measurement of Electromagnetic Disturbance Characteristics of Industrial,Scientific and Medical(ISM) Radio-Frequency Equipment
    EN 55011:2016
    Electromagnetic Compatibility of Multimedia Equipment - Emission Requirements
    EN 55032:2015
    Limits for Harmonic Current Emissions for Equipment with Rated Current≤16A
    EN 61000-3-2:2014
    Limitation of Voltage Fluctuations and Flicker in Low-Voltage Supply Systems for Equipment with Rated Current≤16A
    EN 61000-3-3:2013
    Emission Standard for Residential,Commercial and Light-Industrial Environments
    EN 61000-6-4:2007+A1:2011
    Power Quality
    Testing and Measurement Techniques–Power Quality Measurement Methods
    IEC 61000-4-30 Ed.3 Class S Compliance
    Power Quality Measurement in Power Supply Systems–Part2: Functional Test and Uncertainty Requirements
    IEC 62586-2 Ed.2
    Communications
    Communication Networks and Systems in Substations
    IEC 61850 Ed.1
    A Data Communication Protocol for Building Automation and Control Networks
    BACnet ANSI/ASHRAE Standard 135-2020 (B-ASC Device Profile)
    Mechanical Tests
    Spring Hammer Test
    IEC 62052-11:2003
    Vibration Test
    IEC 62052-11:2003
    Shock Test
    IEC 62052-11:2003

    Wiring Mode

    Wiring Mode
    3P4W
    3-Phase 4-Wire Wye Direct Connection with 3CTs or 4CTs
    3-Phase 4-Wire Wye with 3PTs and 3CTs or 4CTs
    3P3W
    3-Phase 3-Wire Grounded Wye Connections
    3-Phase 3-Wire Direct Connections with 3CTs or 2CTs
    3-Phase 3-Wire with 2PTs and 3CTs or 2CTs
    1P3W
    1-Phase 3-Wire Direct Connection with 2CTs
    1P2W L-N
    1-Phase 2-Wire L-N Direct Connection with 1CT
    1P2W L-L
    1-Phase 2-Wire L-L Direct Connection with 1CT
